| Model Number |
Gear Ratio |
Max Drag (Kg) |
Weight (g) |
Spool Diameter
/Width (mm) |
Line Capacity
Nylon (lb-m) |
Max Retrieval
(cm/Handle Rotation) |
Handle Length (mm) |
Bearings
(BB/Roller) |
JAN Code |

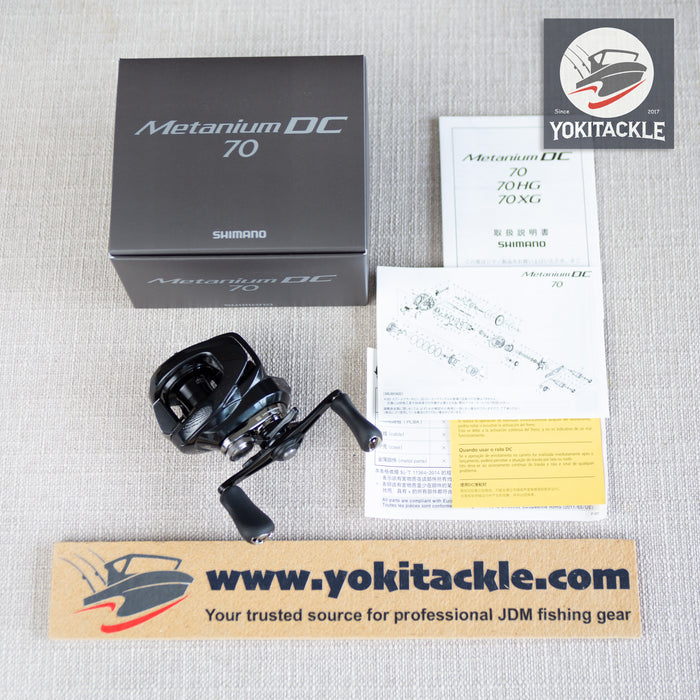

| 70 RIGHT |
6.2 |
5 |
175 |
34/19 |
12-100, 14-90, 16-80, 20-65 |
66 |
42 |
10/1 |
4969363046604 |
| 71 LEFT |
6.2 |
5 |
175 |
34/19 |
12-100, 14-90, 16-80, 20-65 |
66 |
42 |
10/1 |
4969363046611 |

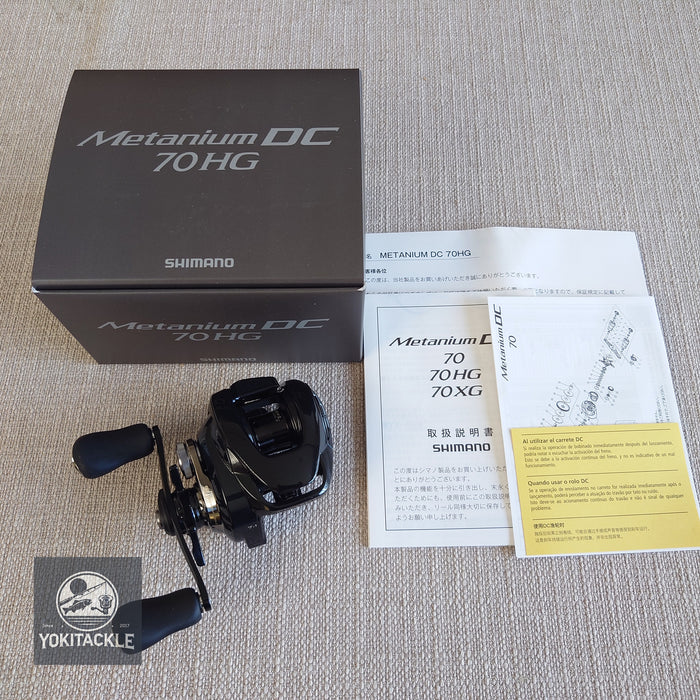

| 70HG RIGHT |
7.1 |
5 |
175 |
34/19 |
12-100, 14-90, 16-80, 20-65 |
76 |
42 |
10/1 |
4969363046628 |

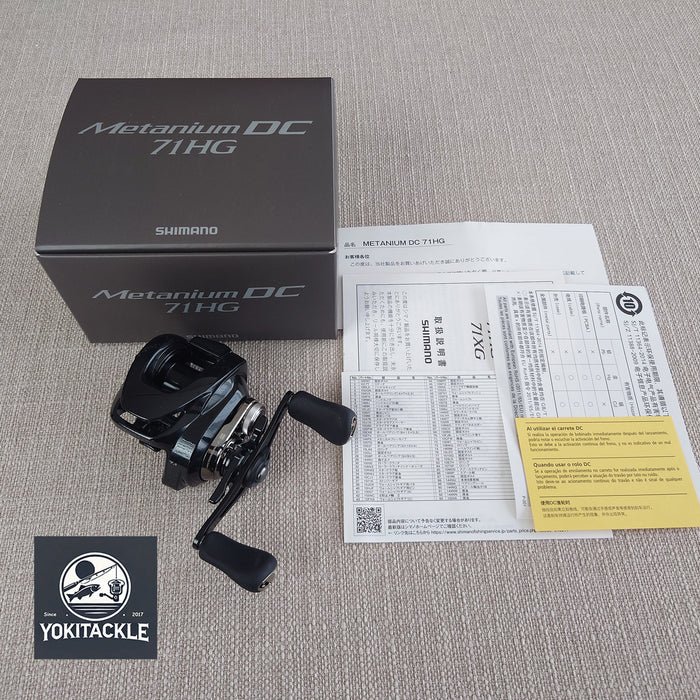

| 71HG LEFT |
7.1 |
5 |
175 |
34/19 |
12-100, 14-90, 16-80, 20-65 |
76 |
42 |
10/1 |
4969363046635 |
| 70XG RIGHT |
8.1 |
5 |
180 |
34/19 |
12-100, 14-90, 16-80, 20-65 |
86 |
45 |
10/1 |
4969363046642 |
| 71XG LEFT |
8.1 |
5 |
180 |
34/19 |
12-100, 14-90, 16-80, 20-65 |
86 |
45 |
10/1 |
4969363046659 |
Shimano Metanium DC Series: A Comprehensive Overview
The Shimano Metanium DC series represents a groundbreaking evolution in the world of baitcasting reels, combining Shimano’s cutting-edge technology with innovative design to create a versatile and high-performing reel for anglers. This series has undergone a full model change after nine years, becoming a "Neo Versatile" model that offers unparalleled casting performance and usability.
1. Design and Core Technology
At the heart of the Shimano Metanium DC is the MGL Spool III, which has been redesigned for optimal versatility. With a diameter of 34mm and width of 19mm, this low inertia spool provides a perfect balance between light start-up speed and casting distance, allowing anglers to handle a wide variety of lures. Whether you’re making long-distance casts or short, low-trajectory casts, the Metanium DC adapts effortlessly to your needs.
The DC braking system is another key feature that sets this reel apart. This intelligent system instantly senses changes in spool rotation and adjusts braking force accordingly. It offers excellent backlash control while maintaining exceptional long-distance casting performance. The new firmware integrated into the DC brake system significantly enhances both the anti-backlash capability and casting distance.
2. Advanced Casting Performance
The S3D spool and Silent Tune technology are designed to minimize spool vibration, maximizing casting performance. This results in smooth and stable casts, even under challenging conditions. Additionally, the X-SHIP system, combined with MicroModule Gearing, provides silky-smooth retrieve with enhanced durability. The result is a reel that feels powerful yet refined in your hands, ideal for handling even the toughest conditions on the water.
3. Core Solid Body and Lightweight Construction
One of the standout features of the Metanium DC is its Core Solid Body, which provides a high level of rigidity while maintaining a lightweight profile. This is the first time the DC brake reel features a core solid body design. By integrating metal into the main frame and level wind protector, Shimano has created a reel that is both compact and strong. This design reduces body flex when fighting large fish, ensuring stable and reliable performance even under heavy loads.
Despite its durability, the reel’s lightweight construction enhances its overall handling, making it comfortable for all-day fishing.
4. Enhanced Braking and Control
Shimano has taken the braking system in the Metanium DC to a new level with the NEW I-DC5 braking system. This system not only reduces line troubles but also provides ultra-precise brake control. The firmware has been completely upgraded to match the MGL Spool III, ensuring top-tier casting performance with minimal effort. Whether you're casting into the wind or making a tricky skip cast, the I-DC5 system provides superior control.
The reel also features a new brake adjustment dial, located on the outside of the reel for easy access. This design allows for real-time adjustments without having to open the side plate, making it more convenient for anglers to fine-tune their settings according to changing conditions.
5. Powerful and Smooth Retrieval
The MicroModule Gear System in the Metanium DC delivers incredibly smooth retrieves. This system reduces vibration by increasing the number of gear teeth that mesh together, resulting in greater strength and smoother operation. The reel also includes a newly designed Duralumin Drive Gear, which further enhances the power and precision of the retrieve.
6. Versatility and Performance Across All Conditions
The Metanium DC is an all-around performer, perfect for both long-distance casting and precise short-range work. Its versatility allows it to excel in various conditions and with different lure weights. With a maximum drag power of 5 kg and handle lengths that range from 42mm to 45mm, the reel is designed to handle a wide range of fishing scenarios.
Conclusion
The Shimano Metanium DC series represents a leap forward in reel technology, offering unmatched versatility, power, and control for anglers. With features like the MGL Spool III, NEW I-DC5 braking system, Core Solid Body, and MicroModule gears, the Metanium DC is a game-changer for both novice and experienced anglers alike. Whether you're fishing for bass in challenging conditions or looking to improve your long-distance casting, the Metanium DC series will meet and exceed your expectations.
