Overall Length |
Sections |
Stored Length |
Weight |
Tip Diameter |
Jig Weight |
Suitable Line PE |
Max Drag |
Max Drag Angle |
Reel Seat Position |
Carbon Content |
JAN Code |
| B510-2 |
1.78m |
1 |
178cm |
174g |
2.2mm |
MAX 180g |
MAX 2 |
4kg |
45° |
440mm |
96.20% |
4969363356253 |
| B510-3 |
1.78m |
1 |
178cm |
176g |
2.3mm |
MAX 200g |
MAX 2.5 |
5kg |
45° |
440mm |
96.40% |
4969363356260 |
| B510-4 |
1.78m |
1 |
178cm |
180g |
2.4mm |
MAX 240g |
MAX 3 |
6kg |
45° |
440mm |
97.00% |
4969363356277 |
| B510-5 |
1.78m |
1 |
178cm |
200g |
2.8mm |
MAX 300g |
MAX 4 |
8kg |
45° |
440mm |
97.30% |
4969363356284 |
| B510-6 |
1.78m |
1 |
178cm |
212g |
3.2mm |
MAX 380g |
MAX 5 |
10kg |
45° |
440mm |
96.90% |
4969363356291 |

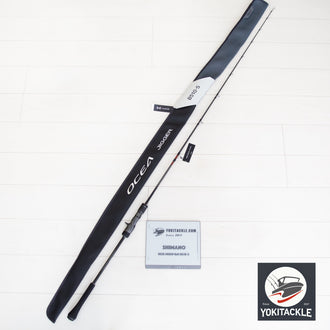

Shimano OCEA JIGGER Bait Series: Advanced Jigging Rods
The Shimano OCEA JIGGER Bait series is engineered for anglers targeting large deep-sea species, offering exceptional power, sensitivity, and control.
High-Power Models for Deep-Sea Challenges
This series includes robust models designed to handle substantial jig weights and depths:
-
B510-5: Supports jig weights up to 300g, suitable for depths of 120m+ with high-pitch jerking and 140m+ with middle-pitch jerking. Ideal for fast currents and deep-range fishing, this model is compatible with reel sizes 2000 to 4000.
-
B510-6: The most powerful in the series, accommodating jig weights up to 380g. It excels at depths of 150m+ with high-pitch jerking and 180m+ with middle-pitch jerking. Despite its strength, the rod's balanced flex reduces angler fatigue during intense jerking motions. Compatible with reel sizes 2000 to 4000.
Advanced Rod Construction
The OCEA JIGGER Bait rods feature Shimano's proprietary technologies:
-
Spiral X Core: Enhances torsional rigidity and overall strength without adding weight, providing precise control over jig movements.
-
High-Power X: Reduces blank twist during jerking and fighting, ensuring accurate lure action and improved hook-setting performance.
Ergonomic Design for Angler Comfort
Designed with the angler's comfort in mind, these rods include:
-
Full Holding Reel Seat: Ensures a secure and comfortable grip, reducing hand fatigue during prolonged sessions.
-
Optimized Length and Balance: The 5'10" length offers a balance between leverage and maneuverability, ideal for various jigging techniques.
Versatility Across Jigging Techniques
The OCEA JIGGER Bait series is versatile, catering to different jigging styles:
-
High-Pitch Jerking: For aggressive, fast-paced jig movements targeting species in deeper waters.
-
Middle-Pitch Jerking: Offers a more moderate action, suitable for a variety of species and conditions.
The Shimano OCEA JIGGER Bait series combines advanced technology with thoughtful design, providing anglers with powerful and sensitive tools for deep-sea jigging. Whether pursuing large pelagic species or exploring deep reefs, these rods deliver performance and comfort for serious offshore anglers.
